New hook block design with tilted sheaves for reduced rope wear.
Accessible central lubrication system.
Hoist condition monitoring system NovaMaster as overload protection with strain gauge load measuring
Hoisting frequency inverter with closed loop, hoisting motor with encoder, frequency inverter controller travelling machineries.
State of the art electrics.
For loads up to 250 t.

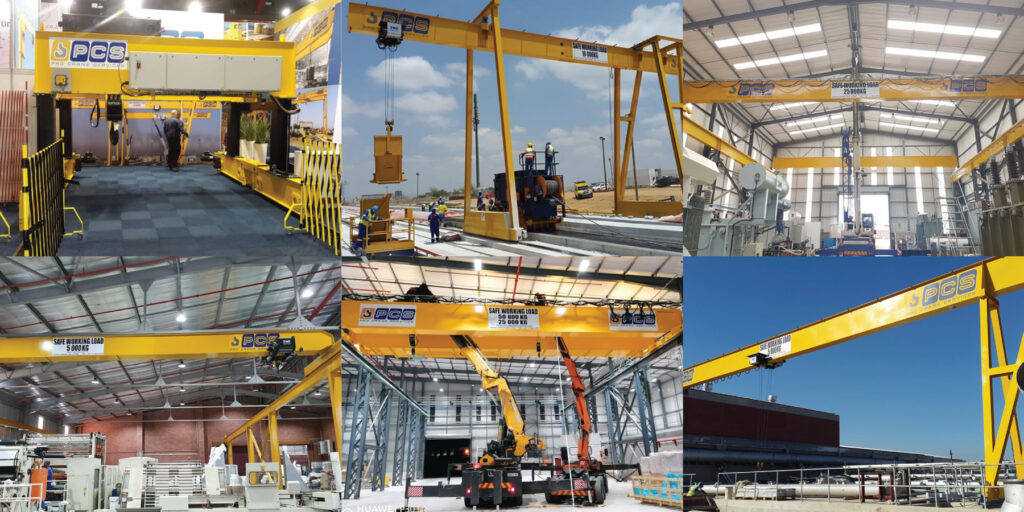

Portal cranes utilize a torsion box girder and legs on either side to form a travelling bridge that is mainly used outdoors for loading and offloading in storage yards or similar areas.
Floor rails eliminate the need for gantry structures and allow easy and free access around the crane area.
Working outside the rail area is made possible with cantilevers on either one or both sides of the legs.
Single and double girder configurations are available from light to heavy loads.
Various configurations available from light loads and short spans to heavy loads and long spans.
Low, medium and high box girder connections to suit both standard and more restricted installations.
Endless optional extras available such as walkways, service platforms, crane lights, alarms, radio remotes and many more.
Compact hoist design to allow extremely good hook height.
Efficient and cost effective for light to medium loads for spans up to 30m.
Well planned standard component basis, depending on the usage with electric chain hoist or electric wire rope hoist.
Minimum lateral hook movements and low load swing with the use of frequency inverters.
Modular crane kits assembled to your specification.
Best overall hook approach and drawn up height dimensions.
Ideal for low head rooms and confined spaces.
Specially designed end carriages to maximise mobility and hook approaches.
For lighter loads up to 10t.
CRANES Efficient and Versatile solution for a variety of requirements
Loads up to 10 000 kg.
Free standing jib cranes with 180°, 270° and 360°slewing options.
Wall mounted jib cranes with 180° slewing range.
Slewing beam as IPE Profile or Profile Master light crane profile.
Suitable for electric chain hoist or manual hand chain blocks.
Electric wire rope hoist on request .
Our light crane systems (Profile Master and Lightster) are available with 3 different profile types to cater for different load weights and suspension distances.
Ideal for production lines and single and multiple crane systems running from a common runway.
The system can be mounted on free standing upright columns or from roof trusses to suit almost any type of room or ceiling design.
For Load capacities up to 2t.
Compact dimensions and best hook approach and space saving trolley .
2 Lifting speeds (6/1) with optional (frequency inverter) for stepless hoisting and lowering .
Available with upper hook, push travel trolley or motor trolley drive.
Standardised electrical module with plug connections for easy accessibility and assembly.
For loads up to 2.5 t.
Efficient and economical usage, with the highest quality.
Compact design and optimum approach dimensions.
Lifting speeds (4/1) optionally with frequency inverter for stepless hoisting and lowering .
Available with upper hook, push travel trolley or motor trolley drive.
For loads up to 5 t.
Perfect utilization of space and almost vertical lifting guarantee. work is carried out precisely and safely.
Low lateral hook movement.
Single girder (low headroom type and normal headroom type), double girder or foot mount options available.
For Crane, Monorail or replacement application.
For loads up to 80t.
Compact design for optimum approach dimensions, handy for transportation to site.
Machined chain sprocket and gears provide smoother and more efficient operation.
Dual ratchet brake with 2 brake friction disks .
ISO hooks equipped with hook latches.
Galvanised hand and load chains with stainless steel available on request.
Available with upper hook, push travel trolley and geared trolley.
For loads up to 20t.
Designed normally for light loads up to 5t capacity.
Free standing or tied back to existing building columns.
Usually bolted through base plates to standard factory floors.
Designed normally for medium to heavy loads .
Free standing where maximum floor coverage is required.
Secured to foundation studs cast in factory floors.
Designed normally for light to medium load up to 12.5t.
Monorails designed to various lengths.
Straight or curved monorails available.
Roof mounted or fixed to goal post arrangements.
Suitable for chain or wire rope hoists.
Galvanized options available.
Designed normally for light to medium loads.
Fixed or movable A-Frames with swivel castors.
Electrically or manually operated options.
Suitable for chain or wire rope hoists.
Galvanized options available.
Specially designed and manufactured transfer cars and trolleys for various applications.
Electrically or manually driven transfer cars.
Flush or surface mounted rail systems.
Fixed or swivel table options.
Bystronic glass handling systems ensure easy and safe transportation. They allow a flexible and economic use in every flat glass and plate processing branch of industry. The remarkable features of our tried, proven and innovative technology are not only reliable and of the highest quality, but also have the following clear advantages:
Careful handling of load.
Minimized effort.
Fast, timesaving operation.
Advantageous cost reduction.
Complete, customer-oriented solutions for the manufacture of laminated glass.
Increased safety measures, energy-saving programmes and changed profile requirements mean continual growth in the demand for special glass products. For this reason, we custom-design our plants for the manufacture of laminated glass and individually configure them to meet your needs.
ECO’ Lamiline
ECO’ Convect
Bystronic glass offers complete, individually developed turnkey system solutions for the efficient pre-processing of automotive glass. The tailor-made production lines are consistently designed to meet the customer’s individual needs and are characterised by the utmost in productivity and ultimate in system availability.
Champ Speed
Champ Drill
Champ Speed Grind
Whether a fully-automatic line for insulating glass unit production is required with warm-edge spacers or an entry-level solution – every insulating glass manufacturer will find the line or machine to meet their requirements.
